ScreenGrid Library

npm

A GPU/Canvas hybrid Screen-Space Grid Aggregation library for MapLibre GL JS. This library provides efficient real-time aggregation of point data into screen-space grids with customizable styling, interactive features, and advanced glyph drawing capabilities. It now also supports non-point geometries via a geometry placement preprocessor and a per-feature glyph rendering mode.

This library is inspired by Aidan Slingsby’s Gridded Glyphmaps and borrows some basic concepts from deck.gl’s ScreenGridLayer, but is built from the ground up with a modular architecture, focusing on performance, flexibility, and ease of use, particularly for MaplibreGL ecosystem.

🚀 Features

📁 Project Structure

screengrid/
├── src/
│   ├── index.js                    # Main entry point
│   ├── ScreenGridLayerGL.js        # Main orchestrator class
│   ├── config/ConfigManager.js     # Configuration management
│   ├── core/                       # Core business logic (pure)
│   │   ├── Aggregator.js
│   │   ├── Projector.js
│   │   └── CellQueryEngine.js
│   ├── canvas/                     # Canvas rendering
│   │   ├── CanvasManager.js
│   │   └── Renderer.js
│   ├── events/                     # Event system
│   │   ├── EventBinder.js
│   │   └── EventHandlers.js
│   ├── glyphs/GlyphUtilities.js    # Glyph drawing utilities
│   └── legend/                     # Legend system
│       ├── Legend.js
│       ├── LegendDataExtractor.js
│       └── LegendRenderers.js
├── dist/                           # Built distribution files
├── docs/
│   ├── ARCHITECTURE.md             # Detailed architecture guide
│   ├── USAGE.md                    # Detailed usage guide
│   └── README.md
├── examples/
│   ├── index.html
│   ├── simple-test.html
│   ├── test.html
│   ├── legend-example.html
│   ├── timeseries.html
│   └── multivariate-timeseries.html
├── package.json
└── rollup.config.mjs

🚀 Quick Start

Installation

# From npm
npm install screengrid

# Peer dependency (you manage this in your app)
npm install maplibre-gl

# Or clone the repository for development
git clone https://github.com/danylaksono/screengrid.git
cd screengrid
npm install
npm run build

# To run examples locally, use a simple HTTP server:
npx http-server -p 8000
# Then open http://localhost:8000/examples/ in your browser

Basic Usage

// ESM (bundlers / modern Node)
import { ScreenGridLayerGL } from 'screengrid';
import maplibregl from 'maplibre-gl';

// Initialize MapLibre map
const map = new maplibregl.Map({
  container: 'map',
  style: 'https://demotiles.maplibre.org/style.json',
  center: [-122.4, 37.74],
  zoom: 11
});

map.on('load', async () => {
  // Load your data
  const data = await fetch('your-data.json').then(r => r.json());

  // Create grid layer
  const gridLayer = new ScreenGridLayerGL({
    data: data,
    getPosition: (d) => d.coordinates,
    getWeight: (d) => d.weight,
    cellSizePixels: 60,
    colorScale: (v) => [255 * v, 200 * (1 - v), 50, 220]
  });

  // Add to map
  map.addLayer(gridLayer);
});

CommonJS (Node or older bundlers)

// CJS require
const { ScreenGridLayerGL } = require('screengrid');
const maplibregl = require('maplibre-gl');

CDN Usage

<!-- UMD build exposes global `ScreenGrid` -->
<script src="https://unpkg.com/screengrid/dist/screengrid.umd.min.js"></script>
<!-- MapLibre (peer) must also be included on the page -->
<link href="https://unpkg.com/maplibre-gl@^4/dist/maplibre-gl.css" rel="stylesheet" />
<script src="https://unpkg.com/maplibre-gl@^4/dist/maplibre-gl.js"></script>
<script>
  const { ScreenGridLayerGL } = ScreenGrid;
  // use ScreenGridLayerGL here
  // ...
  // map.addLayer(new ScreenGridLayerGL({...}))
</script>

Full Example (CDN)

<div id="map" style="position:absolute;top:0;bottom:0;width:100%"></div>
<link href="https://unpkg.com/maplibre-gl@^4/dist/maplibre-gl.css" rel="stylesheet" />
<script src="https://unpkg.com/maplibre-gl@^4/dist/maplibre-gl.js"></script>
<script src="https://unpkg.com/screengrid/dist/screengrid.umd.min.js"></script>
<script>
  const map = new maplibregl.Map({
    container: 'map',
    style: 'https://demotiles.maplibre.org/style.json',
    center: [-122.4, 37.74],
    zoom: 11
  });

  map.on('load', async () => {
    const data = await fetch('your-data.json').then(r => r.json());
    const layer = new ScreenGrid.ScreenGridLayerGL({
      data,
      getPosition: d => d.coordinates,
      getWeight: d => d.weight,
      cellSizePixels: 60,
      colorScale: v => [255 * v, 200 * (1 - v), 50, 220]
    });
    map.addLayer(layer);
  });

  // Optional: hover/click handlers
  // layer.setConfig({ onHover: ({cell}) => console.log(cell) });
</script>

Bundles

maplibre-gl is a peer dependency and is not bundled. In UMD builds, it is expected as a global maplibregl.

🎨 Glyph Drawing

The library supports custom glyph drawing through the onDrawCell callback and a powerful Plugin Ecosystem for reusable glyph visualizations. This enables rich multivariate visualizations including time series, categorical breakdowns, and complex relationships.

📖 📚 Comprehensive Guide: See docs/GLYPH_DRAWING_GUIDE.md for detailed documentation on:

📖 📊 Data Utilities: See docs/DATA_UTILITIES.md for utility functions that simplify common data processing patterns:

Quick Example: Using onDrawCell

const gridLayer = new ScreenGridLayerGL({
  data: bikeData,
  getPosition: (d) => d.COORDINATES,
  getWeight: (d) => d.SPACES,
  enableGlyphs: true,
  onDrawCell: (ctx, x, y, normVal, cellInfo) => {
    const { cellData, glyphRadius } = cellInfo;

    // Calculate aggregated values
    const totalRacks = cellData.reduce((sum, item) => sum + item.data.RACKS, 0);
    const totalSpaces = cellData.reduce((sum, item) => sum + item.data.SPACES, 0);

    // Draw custom glyph
    ctx.fillStyle = `hsl(${200 + normVal * 60}, 70%, 50%)`;
    ctx.beginPath();
    ctx.arc(x, y, glyphRadius, 0, 2 * Math.PI);
    ctx.fill();

    // Add text
    ctx.fillStyle = '#ffffff';
    ctx.font = 'bold 12px Arial';
    ctx.textAlign = 'center';
    ctx.fillText(totalSpaces.toString(), x, y);
  }
});

🔌 Plugin Ecosystem

ScreenGrid includes a Plugin Ecosystem that allows you to create reusable, named glyph visualizations. This system provides:

📖 📚 Full Documentation: See docs/PLUGIN_GLYPH_ECOSYSTEM.md for comprehensive plugin documentation, API reference, and usage patterns.

Using Built-in Plugins

import { ScreenGridLayerGL } from 'screengrid';

// Use a built-in plugin
const layer = new ScreenGridLayerGL({
  data,
  getPosition: (d) => d.coordinates,
  glyph: 'circle',  // Built-in plugin name
  glyphConfig: {
    radius: 15,
    color: '#3498db',
    alpha: 0.9
  },
  enableGlyphs: true
});

Available Built-in Plugins

  1. circle - Simple filled circle with customizable size, color, and opacity
  2. bar - Horizontal bar chart showing multiple values side-by-side
  3. pie - Pie chart showing proportional distribution of values
  4. heatmap - Circle with color intensity representing normalized values

Creating Custom Plugins

import { ScreenGridLayerGL, GlyphRegistry } from 'screengrid';

// Define a custom plugin
const MyCustomGlyph = {
  draw(ctx, x, y, normalizedValue, cellInfo, config) {
    const radius = config.radius || cellInfo.glyphRadius;
    ctx.fillStyle = config.color || '#3498db';
    ctx.beginPath();
    ctx.arc(x, y, radius, 0, 2 * Math.PI);
    ctx.fill();
  },

  // Optional: initialization hook
  init({ layer, config }) {
    console.log(`Initializing plugin for layer ${layer.id}`);
    return {
      destroy() {
        console.log('Cleaning up plugin');
      }
    };
  },

  // Optional: legend support
  getLegend(gridData, config) {
    return {
      type: 'custom',
      title: 'My Visualization',
      items: [
        { label: 'Category A', color: '#ff0000' },
        { label: 'Category B', color: '#00ff00' }
      ]
    };
  }
};

// Register the plugin
GlyphRegistry.register('myGlyph', MyCustomGlyph);

// Use the registered plugin
const layer = new ScreenGridLayerGL({
  data,
  glyph: 'myGlyph',  // Use by name
  glyphConfig: { radius: 15, color: '#ff6600' },
  enableGlyphs: true
});

Plugin Precedence

When rendering glyphs, the system uses the following precedence order (highest to lowest):

  1. User-provided onDrawCell callback (full backward compatibility)
  2. Registered plugin via glyph name
  3. Color-mode rendering (no glyphs)

This ensures backward compatibility while allowing gradual migration to the plugin system.

Plugin Example

See examples/plugin-glyph.html for a complete example demonstrating:

📖 For detailed plugin API documentation: See docs/PLUGIN_GLYPH_ECOSYSTEM.md

📚 Examples

Running the Examples

To run the examples locally:

npx http-server -p 8000
# Then open http://localhost:8000/examples/ in your browser

Available Examples

  1. Full Demo (examples/index.html) - Complete interactive demo with all features
  2. Simple Test (examples/simple-test.html) - Basic functionality verification
  3. Original Test (examples/test.html) - Original test implementation
  4. Legend Example (examples/legend-example.html) - Demonstrates legend functionality
  5. Time Series (examples/timeseries.html) - Temporal data visualization

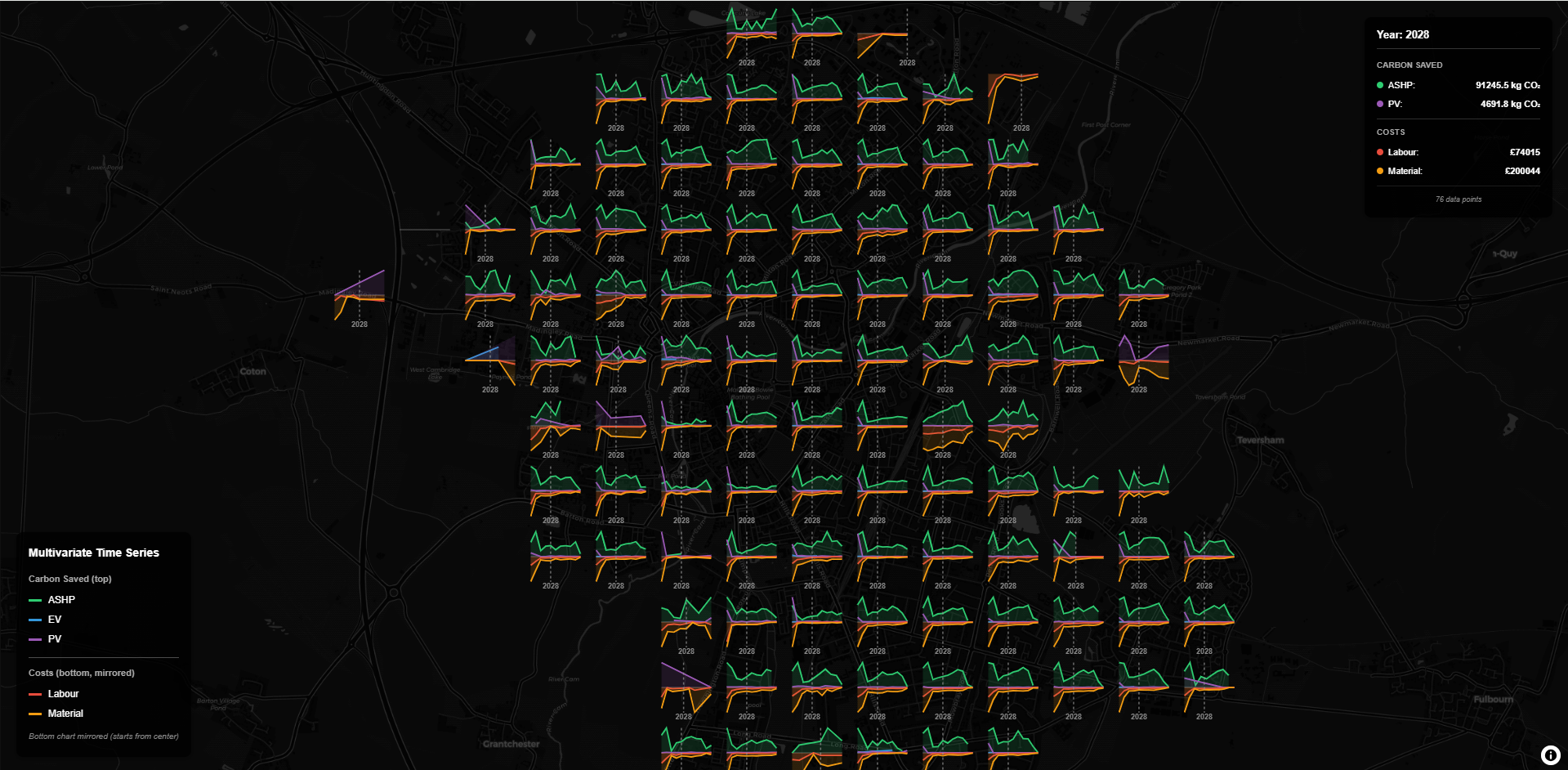

  6. Multivariate Time Series (examples/multivariate-timeseries.html) - Advanced multi-attribute temporal visualization
  7. Plugin Glyph (examples/plugin-glyph.html) - Complete plugin ecosystem example with custom grouped-bar plugin, lifecycle hooks, and legend integration
  8. Data Utilities (examples/data-utilities.html) - Demonstrates data utility functions (groupBy, extractAttributes, computeStats, groupByTime)
  9. Hex Mode (examples/hex-mode.html) - Hexagonal aggregation mode with interactive controls
  10. Hex Mode Simple (examples/hex-mode-simple.html) - Simple hexagonal aggregation example
  11. US States (examples/us-states.html) - Geometry input example with polygon features
  12. Creative Coding (examples/creative-coding.html) - Artistic visualizations: mosaic tiles, tessellations, particles, and abstract patterns demonstrating the library’s creative coding capabilities

Example Features

🔧 API Reference

ScreenGridLayerGL

Constructor Options

Option Type Default Description
id string "screen-grid-layer" Unique identifier for the layer
data Array [] Array of data points to aggregate (legacy point input)
getPosition Function (d) => d.coordinates Function to extract coordinates from data
getWeight Function () => 1 Function to extract weight from data
cellSizePixels number 50 Size of each grid cell in pixels
colorScale Function (v) => [255 * v, 100, 200, 200] Color scale function
onAggregate Function null Callback when grid is aggregated
onHover Function null Callback when hovering over cells
onClick Function null Callback when clicking cells
onDrawCell Function null Callback for custom glyph drawing (highest precedence)
enableGlyphs boolean false Enable glyph-based rendering (when true and a glyph is active, cell backgrounds are off by default unless aggregationModeConfig.showBackground === true)
glyph string null Registered plugin name to use (e.g., 'circle', 'bar', 'pie', 'heatmap')
glyphConfig object {} Configuration object passed to plugin’s draw() method
glyphSize number 0.8 Size of glyphs relative to cell size
aggregationFunction Function|string 'sum' Aggregation function or name (see Aggregation Functions)
normalizationFunction Function|string 'max-local' Normalization function or name (see Normalization Functions)
normalizationContext object {} Additional context for normalization (e.g., {globalMax: 1000})
aggregationMode string 'screen-grid' Aggregation mode: 'screen-grid' (rectangular) or 'screen-hex' (hexagonal)
aggregationModeConfig object {} Mode-specific configuration (e.g., {hexSize: 50, showBackground: true} for hex mode)
adaptiveCellSize boolean false Enable adaptive cell sizing
minCellSize number 20 Minimum cell size in pixels
maxCellSize number 100 Maximum cell size in pixels
zoomBasedSize boolean false Adjust cell size based on zoom level
enabled boolean true Whether the layer is enabled
debugLogs boolean false Enable verbose debug logging (useful for troubleshooting)
source GeoJSON null GeoJSON Feature/FeatureCollection or array of Features (mutually exclusive with data)
placement object null Placement config to derive anchors from geometries (see docs)
renderMode 'screen-grid'|'feature-anchors' 'screen-grid' Rendering path (aggregate vs draw directly)
anchorSizePixels number auto Glyph size in pixels for feature-anchors mode

See docs/GEOMETRY_INPUT_AND_PLACEMENT.md and docs/PLACEMENT_CONFIG.md for geometry input, placement strategies, and validation rules.

🔷 Aggregation Modes

ScreenGrid supports multiple aggregation modes for different visualization needs. The default mode is screen-grid (rectangular cells), but you can also use screen-hex for hexagonal tessellation.

Available Modes

screen-grid (Default)

Rectangular grid cells aligned to screen pixels. This is the classic ScreenGrid behavior.

const layer = new ScreenGridLayerGL({
  data: myData,
  aggregationMode: 'screen-grid', // Default, can be omitted
  cellSizePixels: 50
});

screen-hex

Hexagonal tessellation in screen space. Provides a more organic, visually appealing grid pattern.

const layer = new ScreenGridLayerGL({
  data: myData,
  aggregationMode: 'screen-hex',
  aggregationModeConfig: {
    hexSize: 50, // Size of hexagons (similar to cellSizePixels)
    showBackground: true // Show colored hexagon backgrounds
  }
});

Mode Configuration

Each mode can have mode-specific configuration via aggregationModeConfig:

For screen-hex:

For screen-grid:

Custom Aggregation Modes

You can register custom aggregation modes using the AggregationModeRegistry:

import { AggregationModeRegistry } from 'screengrid';

const MyCustomMode = {
  name: 'my-custom-mode',
  type: 'screen-space', // or 'geographic'
  aggregate(data, getPosition, getWeight, map, config) {
    // Custom aggregation logic
    return aggregationResult;
  },
  render(aggregationResult, ctx, config, map) {
    // Custom rendering logic
  },
  getCellAt(point, aggregationResult, map) {
    // Custom cell query logic
    return cellInfo;
  },
  getStats(aggregationResult) {
    // Optional: custom statistics
    return stats;
  },
  needsUpdateOnZoom() { return true; },
  needsUpdateOnMove() { return true; }
};

AggregationModeRegistry.register('my-custom-mode', MyCustomMode);

// Use it
const layer = new ScreenGridLayerGL({
  data: myData,
  aggregationMode: 'my-custom-mode'
});

See examples/hex-mode.html and examples/hex-mode-simple.html for complete examples of hexagonal aggregation.

📊 Aggregation Functions

ScreenGrid supports flexible aggregation functions that determine how multiple data points within a cell are combined. You can use built-in functions or provide custom functions.

Built-in Aggregation Functions

import { AggregationFunctions } from 'screengrid';

// Sum (default) - sums all weights in a cell
aggregationFunction: AggregationFunctions.sum
// or
aggregationFunction: 'sum'

// Mean - average of all weights
aggregationFunction: AggregationFunctions.mean
// or
aggregationFunction: 'mean'

// Count - number of points in a cell
aggregationFunction: AggregationFunctions.count
// or
aggregationFunction: 'count'

// Max - maximum weight value
aggregationFunction: AggregationFunctions.max
// or
aggregationFunction: 'max'

// Min - minimum weight value
aggregationFunction: AggregationFunctions.min
// or
aggregationFunction: 'min'

Custom Aggregation Functions

You can provide your own aggregation function to support multi-attribute aggregation or custom calculations:

// Single-value custom aggregation
aggregationFunction: (cellData) => {
  // cellData is array of {data, weight, projectedX, projectedY}
  return cellData.reduce((sum, item) => sum + item.weight * 2, 0);
}

// Multi-attribute aggregation (returns object)
aggregationFunction: (cellData) => {
  return {
    total: cellData.reduce((sum, item) => sum + item.weight, 0),
    count: cellData.length,
    avg: cellData.reduce((sum, item) => sum + item.weight, 0) / cellData.length,
    max: Math.max(...cellData.map(item => item.weight)),
    // Access original data attributes
    categories: cellData.map(item => item.data.category)
  };
}

Registering Custom Aggregation Functions

import { AggregationFunctionRegistry } from 'screengrid';

// Register a custom function
AggregationFunctionRegistry.register('custom-sum', (cellData) => {
  return cellData.reduce((sum, item) => sum + item.weight, 0);
});

// Use it by name
aggregationFunction: 'custom-sum'

Note: When using multi-attribute aggregation (returning objects), normalization is skipped automatically. You’ll need to handle normalization in your glyph drawing function (onDrawCell) or custom glyph plugin.

📈 Normalization Functions

Normalization functions convert raw aggregated cell values to a normalized range (0-1) for consistent rendering. You can use built-in strategies or provide custom functions.

Built-in Normalization Functions

import { NormalizationFunctions } from 'screengrid';

// Max-local (default) - normalizes relative to max value in current grid
normalizationFunction: NormalizationFunctions.maxLocal
// or
normalizationFunction: 'max-local'

// Max-global - normalizes relative to a global maximum
normalizationFunction: NormalizationFunctions.maxGlobal
// Requires normalizationContext: {globalMax: 1000}
normalizationContext: { globalMax: 1000 }

// Z-score - normalizes using z-score transformation
normalizationFunction: NormalizationFunctions.zScore
// or
normalizationFunction: 'z-score'

// Percentile - normalizes based on percentile rank
normalizationFunction: NormalizationFunctions.percentile
// or
normalizationFunction: 'percentile'

Custom Normalization Functions

// Custom normalization function
normalizationFunction: (grid, cellValue, cellIndex, context) => {
  // grid: array of all cell values
  // cellValue: value of current cell
  // cellIndex: index of current cell
  // context: {max, min, mean, std, totalValue, cellsWithData, ...custom}

  // Example: logarithmic normalization
  if (cellValue === 0 || context.max === 0) return 0;
  return Math.log(cellValue + 1) / Math.log(context.max + 1);
}

Registering Custom Normalization Functions

import { NormalizationFunctionRegistry } from 'screengrid';

// Register a custom function
NormalizationFunctionRegistry.register('log-normal', (grid, cellValue, cellIndex, context) => {
  if (cellValue === 0 || context.max === 0) return 0;
  return Math.log(cellValue + 1) / Math.log(context.max + 1);
});

// Use it by name
normalizationFunction: 'log-normal'

Example: Using Aggregation and Normalization Together

import { ScreenGridLayerGL, AggregationFunctions, NormalizationFunctions } from 'screengrid';

const layer = new ScreenGridLayerGL({
  data: myData,
  getPosition: d => d.coordinates,
  getWeight: d => d.value,

  // Use mean aggregation instead of sum
  aggregationFunction: AggregationFunctions.mean,

  // Use z-score normalization
  normalizationFunction: NormalizationFunctions.zScore,

  // Or use global normalization with context
  normalizationFunction: NormalizationFunctions.maxGlobal,
  normalizationContext: { globalMax: 10000 },

  colorScale: (v) => [255 * v, 200 * (1 - v), 50, 220]
});

🛠️ Built-in Glyph Utilities

// Circle glyph
ScreenGridLayerGL.drawCircleGlyph(ctx, x, y, radius, color, alpha);

// Bar chart glyph
ScreenGridLayerGL.drawBarGlyph(ctx, x, y, values, maxValue, cellSize, colors);

// Pie chart glyph
ScreenGridLayerGL.drawPieGlyph(ctx, x, y, values, radius, colors);

// Scatter plot glyph
ScreenGridLayerGL.drawScatterGlyph(ctx, x, y, points, cellSize, color);

// Donut chart glyph (v2.0.0+)
ScreenGridLayerGL.drawDonutGlyph(ctx, x, y, values, outerRadius, innerRadius, colors);

// Heatmap intensity glyph (v2.0.0+)
ScreenGridLayerGL.drawHeatmapGlyph(ctx, x, y, radius, normalizedValue, colorScale);

// Radial bar chart glyph (v2.0.0+)
ScreenGridLayerGL.drawRadialBarGlyph(ctx, x, y, values, maxValue, maxRadius, color);

GlyphRegistry API

The GlyphRegistry manages the plugin ecosystem and provides methods for registering and managing glyph plugins:

import { GlyphRegistry } from 'screengrid';

// Register a plugin
GlyphRegistry.register(name, plugin, { overwrite = false })

// Retrieve a plugin
GlyphRegistry.get(name)

// Check if plugin exists
GlyphRegistry.has(name)

// List all registered plugins
GlyphRegistry.list()

// Unregister a plugin
GlyphRegistry.unregister(name)

// Clear all plugins (use with caution)
GlyphRegistry.clear()

See Plugin Ecosystem section above for detailed usage examples.

AggregationModeRegistry API

The AggregationModeRegistry manages aggregation mode plugins:

import { AggregationModeRegistry } from 'screengrid';

// Register a custom mode
AggregationModeRegistry.register(name, modePlugin, { overwrite = false })

// Retrieve a mode
AggregationModeRegistry.get(name)

// Check if mode exists
AggregationModeRegistry.has(name)

// List all registered modes
AggregationModeRegistry.list()

// Unregister a mode
AggregationModeRegistry.unregister(name)

Logger API

The Logger utility provides controlled debug logging:

import { Logger, setDebug } from 'screengrid';

// Enable/disable debug logging globally
setDebug(true);

// Use logger (logs only when debug is enabled)
Logger.log('Debug message');
Logger.warn('Warning message');
Logger.error('Error message'); // Always shown, even when debug is disabled

Note: Debug logging can also be controlled via the debugLogs configuration option.

📦 Exported Modules & Utilities

The library exports various modules and utilities that you can use independently:

Core Classes

Aggregation & Normalization

Glyphs & Plugins

Geometry & Placement

Canvas & Rendering

Events

Configuration & Utilities

Legend

Example:

import {
  ScreenGridLayerGL,
  AggregationModeRegistry,
  GlyphRegistry,
  Logger,
  setDebug
} from 'screengrid';

📊 Legend Module

The library includes a powerful Legend module for automatically generating data-driven legends:

import { Legend } from 'screengrid';

// Create a legend connected to your grid layer
const legend = new Legend({
  layer: gridLayer,
  type: 'auto', // 'color-scale', 'categorical', 'temporal', 'size-scale', 'auto', 'multi'
  position: 'bottom-right', // 'top-left', 'top-right', 'bottom-left', 'bottom-right'
  title: 'Data Legend'
});

// The legend automatically updates when the grid is aggregated

Legend Types

See examples/legend-example.html for detailed usage examples.

🐛 Troubleshooting

Common Issues

  1. Grid not visible: Check browser console for errors, ensure data is loaded correctly
  2. Glyphs not rendering: Verify enableGlyphs: true and onDrawCell callback is provided
  3. Performance issues: Try increasing cell size or reducing data points
  4. Canvas issues: Ensure MapLibre GL JS is properly loaded

Debug Mode

Enable debug logging via the debugLogs configuration option:

const layer = new ScreenGridLayerGL({
  data: myData,
  debugLogs: true // Enable verbose debug logging
});

Or programmatically:

import { setDebug } from 'screengrid';

setDebug(true); // Enable debug logging globally

The library provides detailed logging for:

Note: Debug logs are disabled by default for performance. Enable only when troubleshooting.

👤 Author

dany laksono

📄 License

MIT License - see LICENSE file for details.

🤝 Contributing

  1. Fork the repository
  2. Create a feature branch
  3. Make your changes
  4. Add tests if applicable
  5. Submit a pull request

📝 Changelog

v2.2.0 (Current)

v2.1.0

v2.0.0

v1.0.0

This site is open source. Improve this page.
