geomorpher

geo-morpher

npm version License: MIT

GeoJSON morphing utilities for animating between regular geography and cartograms, packaged as a native JavaScript library with a MapLibre-first adapter and Leaflet compatibility helpers.

Status

This library is currently in early-stage development (v0.1.1) and has recently completed a migration to a MapLibre-first adapter. The core morphing engine is stable, but the MapLibre adapter is new and under active development. Leaflet compatibility is maintained. Community feedback and contributions are welcome.

Installation

npm install geo-morpher

Leaflet is provided as a peer dependency—bring your own Leaflet instance when using the compatibility helpers. MapLibre remains the default adapter and is bundled as a dependency for out-of-the-box usage; if your build already supplies maplibre-gl, mark it as external to avoid duplicating the library.

Usage

Project structure highlights:

src/
  core/            # GeoMorpher core engine
  adapters/        # Integration helpers (Leaflet, etc.)
  lib/             # Shared runtime utilities (OSGB projection)
  utils/           # Data enrichment and projection helpers
data/              # Sample Oxford LSOA datasets
examples/          # Runnable browser demos (MapLibre & Leaflet)
test/              # node:test coverage for core behaviours

MapLibre adapter (default)

MapLibre basemap effects

createMapLibreMorphLayers accepts a basemapEffect configuration that interpolates paint properties on existing style layers as the morph factor changes. This mirrors the Leaflet DOM-based blur/fade behaviour while staying inside the MapLibre style system.

const morph = await createMapLibreMorphLayers({
  morpher,
  map,
  basemapEffect: {
    layers: ["basemap", "basemap-labels"],
    properties: {
      "raster-opacity": [1, 0.15],
      "raster-brightness-max": { from: 1, to: 1.4 },
    },
    propertyClamp: {
      "raster-brightness-max": [0, 2],
    },
    easing: (t) => t * t, // optional easing curve
  },
});

// Update morph factor, basemap effect adjusts automatically
morph.updateMorphFactor(0.75);

// Apply effect manually (e.g., when animating via requestAnimationFrame)
morph.applyBasemapEffect(0.5);

1. Prepare morphing data

import { GeoMorpher } from "geo-morpher";
import regularGeoJSON from "./data/oxford_lsoas_regular.json" assert { type: "json" };
import cartogramGeoJSON from "./data/oxford_lsoas_cartogram.json" assert { type: "json" };

const morpher = new GeoMorpher({
  regularGeoJSON,
  cartogramGeoJSON,
  data: await fetchModelData(),
  aggregations: {
    population: "sum",
    households: "sum",
  },
});

await morpher.prepare();

const regular = morpher.getRegularFeatureCollection();
const cartogram = morpher.getCartogramFeatureCollection();
const tween = morpher.getInterpolatedFeatureCollection(0.5);

Using custom projections

By default, GeoMorpher assumes input data is in OSGB (British National Grid) and converts to WGS84 for Leaflet. If your data is in a different coordinate system, pass a custom projection:

import { GeoMorpher, WGS84Projection, isLikelyWGS84 } from "geo-morpher";

// Auto-detect coordinate system
const detectedProjection = isLikelyWGS84(regularGeoJSON);
console.log("Detected:", detectedProjection); // 'WGS84', 'OSGB', or 'UNKNOWN'

// For data already in WGS84 (lat/lng)
const morpher = new GeoMorpher({
  regularGeoJSON,
  cartogramGeoJSON,
  projection: WGS84Projection, // No transformation needed
});

// For Web Mercator data
import { WebMercatorProjection } from "geo-morpher";
const morpher = new GeoMorpher({
  regularGeoJSON,
  cartogramGeoJSON,
  projection: WebMercatorProjection,
});

// Custom projection (e.g., using proj4)
const customProjection = {
  toGeo: ([x, y]) => {
    // Transform [x, y] to [lng, lat]
    return [lng, lat];
  }
};

See examples/maplibre/projections/index.html for a browser-based custom projection demo.

2. Drop the morph straight into Leaflet (compat)

import L from "leaflet";
import { createLeafletMorphLayers } from "geo-morpher";

const basemapLayer = L.tileLayer("https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png", {
  attribution: "© OpenStreetMap contributors",
}).addTo(map);

let blurEnabled = true;

const {
  group,
  regularLayer,
  cartogramLayer,
  tweenLayer,
  updateMorphFactor,
} = await createLeafletMorphLayers({
  morpher,
  L,
  morphFactor: 0.25,
  regularStyle: () => ({ color: "#1f77b4", weight: 1 }),
  cartogramStyle: () => ({ color: "#ff7f0e", weight: 1 }),
  tweenStyle: () => ({ color: "#2ca02c", weight: 2 }),
  onEachFeature: (feature, layer) => {
    layer.bindTooltip(`${feature.properties.code}`);
  },
  basemapLayer,
  basemapEffect: {
    blurRange: [0, 12],
    opacityRange: [1, 0.05],
    grayscaleRange: [0, 1],
    isEnabled: () => blurEnabled,
  },
});

group.addTo(map);

// Update the tween geometry whenever you like
updateMorphFactor(0.75);

Provide either basemapLayer (any Leaflet layer with a container) or basemapEffect.target to tell the helper which element to manipulate. By default the basemap will progressively blur and fade as the morph factor approaches 1, but you can adjust the ranges—or add brightness/grayscale tweaks—to match your design. You can also wire up UI to toggle the behaviour at runtime by returning false from basemapEffect.isEnabled.

3. Overlay multivariate glyphs

The glyph system is completely customizable with no hardcoded chart types. You provide a rendering function that can return any visualization you can create with HTML, SVG, Canvas, or third-party libraries like D3.js or Chart.js. The helper automatically keeps markers positioned and synchronized with the morphing geometry.

See the full glyphs guide: docs/glyphs.md

Example with pie charts:

import {
  GeoMorpher,
  createLeafletMorphLayers,
  createLeafletGlyphLayer,
} from "geo-morpher";

const categories = [
  { key: "population", color: "#4e79a7" },
  { key: "households", color: "#f28e2c" },
];

const drawPie = ({ data, feature }) => {
  const properties = data?.data?.properties ?? feature.properties ?? {};
  const slices = categories
    .map(({ key, color }) => ({
      value: Number(properties[key] ?? 0),
      color,
    }))
    .filter((slice) => slice.value > 0);

  if (slices.length === 0) return null;

  const svg = buildPieSVG(slices); // your own renderer (D3, Canvas, vanilla SVG...)
  return {
    html: svg,
    className: "pie-chart-marker",
    iconSize: [52, 52],
    iconAnchor: [26, 26],
  };
};

const glyphLayer = await createLeafletGlyphLayer({
  morpher,
  L,
  map,
  geometry: "interpolated",
  morphFactor: 0.25,
  pane: "glyphs",
  drawGlyph: drawPie,
});

// Keep glyphs synced with the tweened geometry
slider.addEventListener("input", (event) => {
  const value = Number(event.target.value);
  updateMorphFactor(value);
  glyphLayer.updateGlyphs({ morphFactor: value });
});

drawGlyph receives { feature, featureId, data, morpher, geometry, morphFactor } and can return:

Configuration object properties:

Property Type Default Description
html string | HTMLElement - Your custom HTML/SVG string or DOM element
className string "geomorpher-glyph" CSS class for the marker
iconSize [number, number] [48, 48] Width and height in pixels
iconAnchor [number, number] [24, 24] Anchor point in pixels (center by default)
pane string - Leaflet pane name for z-index control
markerOptions object {} Additional Leaflet marker options
divIconOptions object {} Additional Leaflet divIcon options
icon L.Icon - Pre-built Leaflet icon (overrides all other options)

Optionally provide getGlyphData or filterFeature callbacks to customise how data/visibility is resolved. When you call glyphLayer.clear() all markers are removed; glyphLayer.getState() exposes the current geometry, morph factor, and marker count.

Data contract for glyphs

By default createLeafletGlyphLayer will surface whatever the core GeoMorpher knows about the current feature via morpher.getKeyData():

field type description
feature GeoJSON Feature The rendered feature taken from the requested geography (regular, cartogram, or tweened). Includes feature.properties and a centroid array.
featureId string Resolved via getFeatureId(feature) (defaults to feature.properties.code ?? feature.properties.id).
data object | null When using the built-in lookup this is the morpher key entry: { code, population, data }. The data property holds the enriched GeoJSON feature returned from GeoMorpher.prepare()—handy when you stored additional indicators during enrichment.
morpher GeoMorpher The instance you passed in, allowing on-demand queries (getInterpolatedLookup, etc.).
geometry string | function The geometry source currently in play (regular, cartogram, or interpolated).
morphFactor number The morph factor used for the last update (only meaningful when geometry is interpolated).

If you want a different data shape, supply getGlyphData:

const glyphLayer = await createLeafletGlyphLayer({
  morpher,
  L,
  drawGlyph,
  getGlyphData: ({ featureId }) => externalStatsById[featureId],
});

The callback receives the same context object (minus the final data field) and should return whatever payload your renderer expects. filterFeature(context) lets you drop glyphs entirely (return false) for a given feature.

Alternative chart types and rendering approaches

The glyph system accepts any HTML/SVG content. Here are examples with different visualization types:

Bar chart:

drawGlyph: ({ data, feature }) => {
  const values = [data.value1, data.value2, data.value3];
  const bars = values.map((v, i) =>
    `<rect x="${i*20}" y="${60-v}" width="15" height="${v}" fill="steelblue"/>`
  ).join('');

  return {
    html: `<svg width="60" height="60">${bars}</svg>`,
    iconSize: [60, 60],
    iconAnchor: [30, 30],
  };
}

Using D3.js:

import * as d3 from "d3";

drawGlyph: ({ data }) => {
  const div = document.createElement('div');
  div.style.width = '80px';
  div.style.height = '80px';

  const svg = d3.select(div).append('svg')
    .attr('width', 80)
    .attr('height', 80);

  // Use D3 to create any visualization
  svg.selectAll('circle')
    .data(data.values)
    .enter().append('circle')
    .attr('cx', (d, i) => i * 20 + 10)
    .attr('cy', 40)
    .attr('r', d => d.radius)
    .attr('fill', d => d.color);

  return div; // Return DOM element directly
}

Custom icons or images:

drawGlyph: ({ data }) => {
  return {
    html: `<img src="/icons/${data.category}.png" width="32" height="32"/>`,
    iconSize: [32, 32],
    iconAnchor: [16, 16],
  };
}

Pre-built Leaflet icons:

drawGlyph: ({ data }) => {
  const icon = L.icon({
    iconUrl: `/markers/${data.type}.png`,
    iconSize: [32, 32],
    iconAnchor: [16, 32],
    popupAnchor: [0, -32],
  });

  return { icon }; // Full control over Leaflet icon
}

Sparkline with HTML Canvas:

drawGlyph: ({ data }) => {
  const canvas = document.createElement('canvas');
  canvas.width = 80;
  canvas.height = 40;
  const ctx = canvas.getContext('2d');

  // Draw sparkline
  ctx.strokeStyle = '#4e79a7';
  ctx.lineWidth = 2;
  ctx.beginPath();
  data.timeSeries.forEach((value, i) => {
    const x = (i / (data.timeSeries.length - 1)) * 80;
    const y = 40 - (value * 40);
    i === 0 ? ctx.moveTo(x, y) : ctx.lineTo(x, y);
  });
  ctx.stroke();

  return canvas.toDataURL(); // Return as data URL
}

Zoom-scaling glyphs

By default, glyphs maintain a fixed pixel size regardless of map zoom level (standard Leaflet marker behavior). However, you can enable scaleWithZoom to make glyphs resize proportionally with the underlying map features—ideal for waffle charts, heatmap cells, or other visualizations that should fill polygon bounds.

const glyphLayer = await createLeafletGlyphLayer({
  morpher,
  L,
  map,
  scaleWithZoom: true, // Enable zoom-responsive sizing
  drawGlyph: ({ data, feature, featureBounds, zoom }) => {
    if (!featureBounds) return null;

    const { width, height } = featureBounds; // Pixel dimensions at current zoom

    // Create waffle chart that fills the cartogram polygon
    const gridSize = 10;
    const cellSize = Math.min(width, height) / gridSize;
    const fillRatio = data.value / data.max;
    const filledCells = Math.floor(gridSize * gridSize * fillRatio);

    const cells = [];
    for (let i = 0; i < gridSize; i++) {
      for (let j = 0; j < gridSize; j++) {
        const index = i * gridSize + j;
        const filled = index < filledCells;
        cells.push(
          `<rect x="${j * cellSize}" y="${i * cellSize}"
                 width="${cellSize}" height="${cellSize}"
                 fill="${filled ? '#4e79a7' : '#e0e0e0'}"/>`
        );
      }
    }

    return {
      html: `<svg width="${width}" height="${height}">${cells.join('')}</svg>`,
      iconSize: [width, height],
      iconAnchor: [width / 2, height / 2],
    };
  },
});

When scaleWithZoom is enabled:

A complete example is available at examples/leaflet/zoom-scaling-glyphs.html.

Legacy wrapper

If you previously relied on the geoMorpher factory from the Observable notebook, it is still available:

import { geoMorpher } from "geo-morpher";

const result = await geoMorpher({
  regularGeoJSON,
  cartogramGeoJSON,
  data,
  aggregations,
  morphFactor: 0.5,
});

console.log(result.tweenLookup);

Node script (removed)

The previous Node-only example has been removed in favor of browser-based demos under examples/maplibre and examples/leaflet.

Native browser examples (MapLibre & Leaflet)

Serve the browser demos to see geo-morpher running on top of either Leaflet or MapLibre without a build step. Dependencies are resolved via import maps to CDN-hosted ES modules.

npm run examples:browser

Then open:

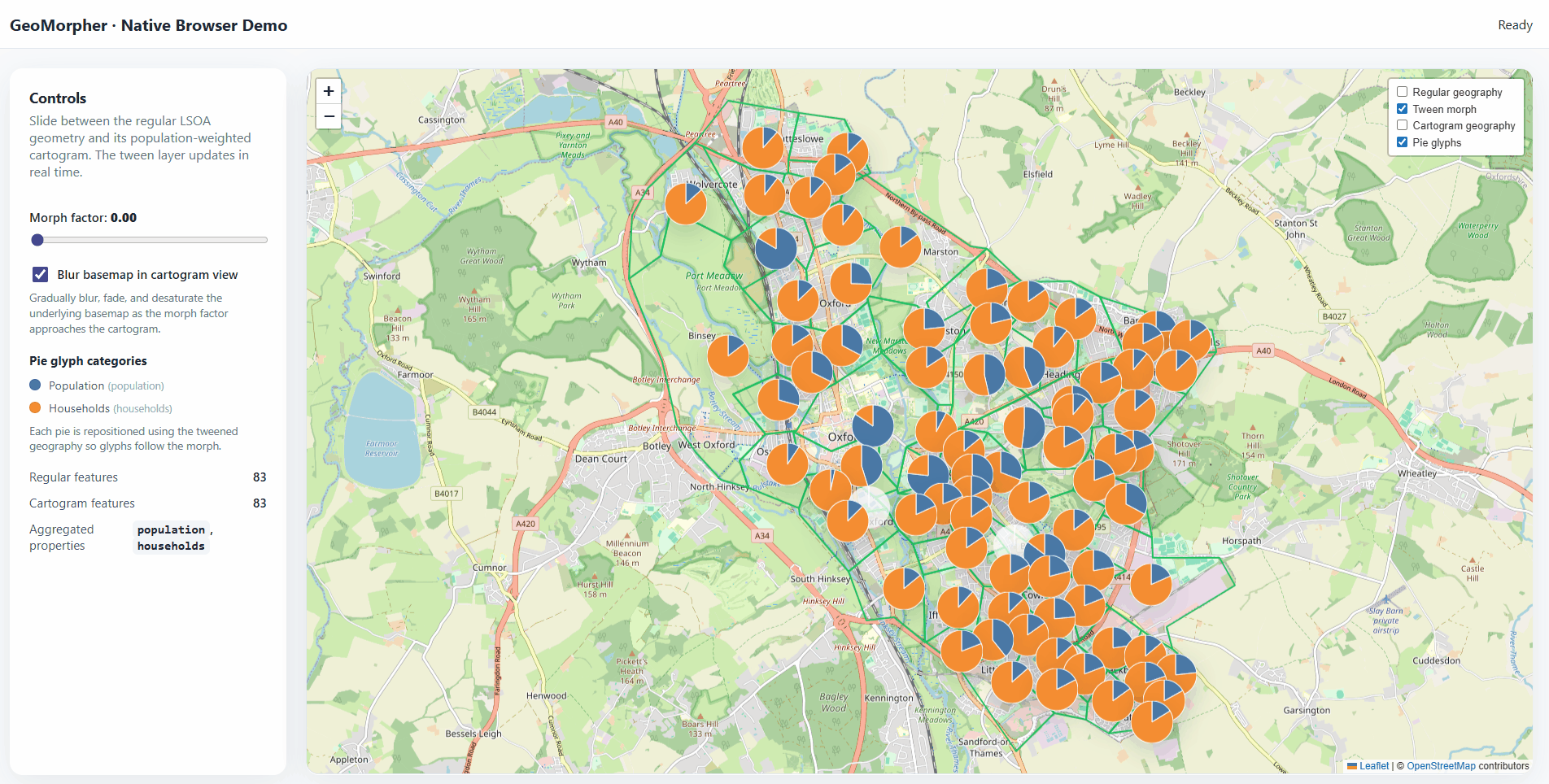

Each demo provides a morph slider and glyph overlays; the MapLibre version showcases GPU-driven rendering, paint-property basemap fading, and DOM marker glyphs running through the new adapter. (An internet connection is required to fetch CDN-hosted modules and map tiles.)

Additional examples:

Testing

Run the bundled smoke tests with:

npm test

License

MIT
